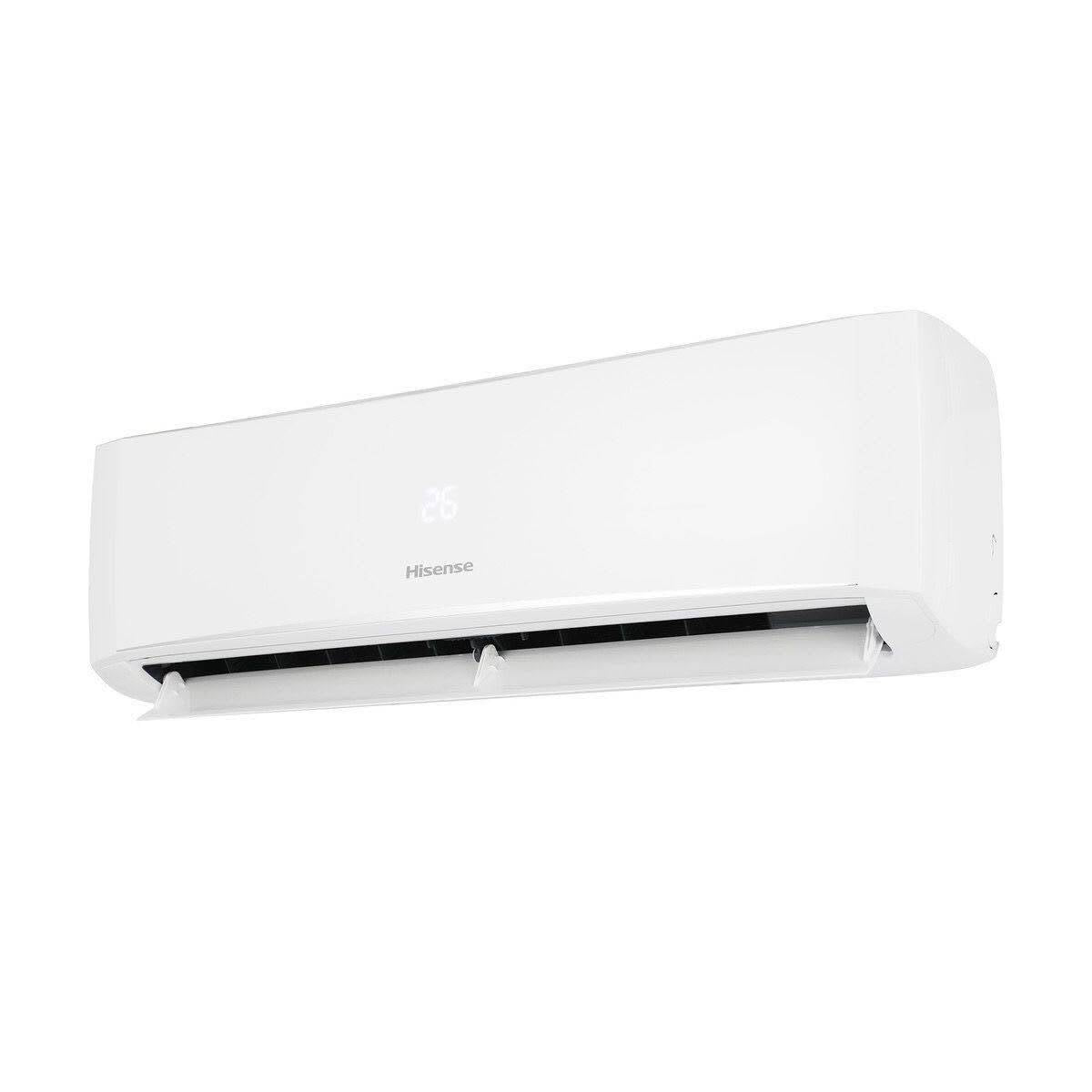

R32 Standard Air Conditioner (CBG)
Eksklusif untuk warga Lundu.
Tingkatkan keselesaan ruang kediaman atau pejabat anda dengan Penyaman Udara Standard R32 (Siri CBG). Direka dengan teliti untuk memberikan prestasi penyejukan yang optimum sambil mengekalkan profil yang sofistikated dan elegan untuk ruang moden anda.
Terdapat dalam dua pilihan kapasiti yang bersesuaian dengan keluasan ruang anda: Model 1.0HP (AN09CBG) dan 1.5HP (AN12CBG).
Spesifikasi Utama:
-
Kapasiti Penyejukan: 1.0HP (9,000 Btu/h) dan 1.5HP (12,000 Btu/h)
-
Teknologi Penyejukan: Menggunakan gas R32 yang cekap dan mesra alam dengan Penarafan Cekap Tenaga 3-Bintang
-
Ciri-ciri Pintar: Dilengkapi dengan Mod Tidur, Pemasa 24 Jam, dan Fungsi Penyejukan Pantas (Super Function)
-
Kemudahan Penyelenggaraan: Reka bentuk panel dan penapis PP yang mudah ditanggalkan serta boleh dicuci
-
Antaramuka: Paparan LED intuitif beserta Alat Kawalan Jauh Wayarles LCD
-
Jaminan Komprehensif: 2 Tahun Jaminan Umum dan 5 Tahun Jaminan Pemampat
Nikmati suasana yang nyaman dengan kualiti penyejukan yang boleh dipercayai. Sila hubungi kami untuk sebarang pertanyaan, sebut harga, atau pengaturan pemasangan.
Exclusive to the Lundu community.
Enhance the comfort of your living or workspace with the R32 Standard Air Conditioner (CBG Series). Meticulously designed to deliver optimal cooling performance while maintaining a sophisticated and elegant profile for your modern interiors.
Available in two capacities tailored to suit your spatial requirements: the 1.0HP (AN09CBG) and 1.5HP (AN12CBG) models.
Core Specifications:
-
Cooling Capacity: 1.0HP (9,000 Btu/h) and 1.5HP (12,000 Btu/h)
-
Cooling Technology: Utilizes eco-conscious and highly efficient R32 refrigerant with a 3-Star Energy Rating
-
Smart Features: Equipped with Sleep Operation, a 24-Hour Timer, and Rapid Cooling (Super Function)
-
Maintenance Convenience: Features fully removable and washable panels and PP filters
-
Interface: Intuitive LED display complete with an LCD Wireless Remote Controller
-
Comprehensive Warranty: 2-Year General Warranty and 5-Year Compressor Warranty
Experience a pristine and comfortable climate with assured reliability. Please contact us for inquiries, quotations, or to arrange your installation.
| Model No. | AN12CBG | AN09CBG | |
|---|---|---|---|
| Type | Non-Inverter | Non-Inverter | |
| HP | 1.5HP | 1.0HP | |
| Cooling Capacity | (Btu/h) | 12,000 | 9,000 |
| Rated Input-Cooling | (W) | 1,050 | 830 |
| Air Circulation | (m3/h) | 600 | 580 |
| EER for Cooling | W/W | 3.35 | 3.18 |
| Energy Class | Cooling | 3 Stars | 3 Stars |
| Average Energy Consumption/Year | kWh | 1,614 | 1,363 |
| Refrigerant | Type | R32 | R32 |
| Refrigerant charge volume | g | 630 | 400 |
| Indoor Unit Noise Level (Sound Pressure) | High(dB (A)) | 39 | 38 |
| Low(dB (A)) | 32 | 32 | |
| Outdoor Unit Noise Level (Sound Pressure) | dB (A) | 51 | 50 |
Power Supply
| Model No. | AN12CBG | AN09CBG | |
|---|---|---|---|
| Voltage, Frequency | V | 220-240V~,50Hz | 220-240V~,50Hz |
| Phase | 1P | 1P | |
| Rated Current | Cooling (A) | 4.3 | 3.7 |
| Maximal Pipe Length | m | 20 | 20 |
| Maximal Heights’ Interval | m | 10 | 10 |
| LRA | A | 25 | 18 |
| Degree of Protection (IN/OUT) | IP | IPX0 / IPX4 | IPX0 / IPX4 |
System
| Model No. | AN12CBG | AN09CBG |
|---|---|---|
| Compressor Type | Rotary | Rotary |
Pipe Diameter
| Model No. | AN12CBG | AN09CBG |
|---|---|---|
| Liquid Pipe (inch) | 1/4 | 1/4 |
| Gas Pipe (inch) | 1/2 | 3/8 |
Features (General)
| Model No. | AN12CBG | AN09CBG |
|---|---|---|
| Super Quiet (19 dBA) | – | – |
| Display | LED | LED |
| LCD Wireless Remote Controller | Yes | Yes |
| Removable and Washable Panel | Yes | Yes |
| Washable PP Filter | Yes | Yes |
| 24 Hours Timer | Yes | Yes |
| 3 Speed and Auto Indoor Fan Control | Yes | Yes |
| Vertical Auto Swing Louver | Yes | Yes |
| Horizontal Auto Swing Louver | – | – |
| Sleep Operation | Yes | Yes |

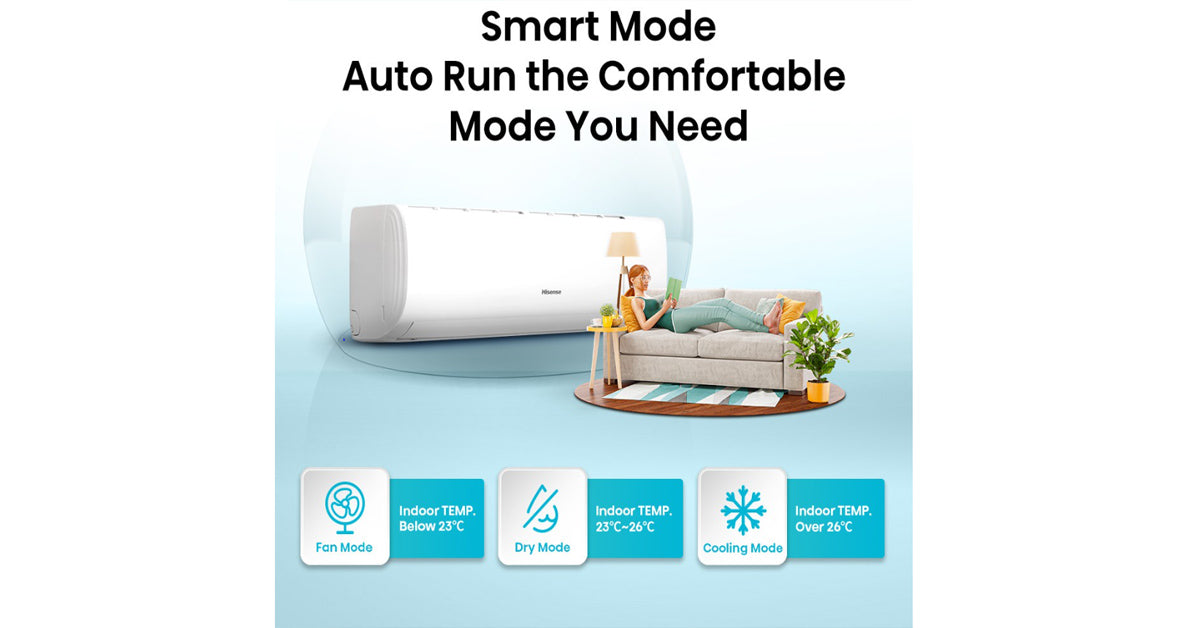

| Smart Function | Yes | Yes |
| Super Function | Yes | Yes |
| Auto Restart | Yes | Yes |
| Dimmer | Yes | Yes |
| 2 Ways Draining | Yes, Left and Right | Yes, Left and Right |
| Ionizer Filter | – | – |
Other Information
| Model No. | AN12CBG | AN09CBG | |
|---|---|---|---|
| Packaging Dimensions
W x H x D (mm) |
Indoor Unit | 850 x 320 x 260 | 850 x 320 x 260 |
| Outdoor Unit | 830 x 335 x 600 | 780 x 530 x 315 | |

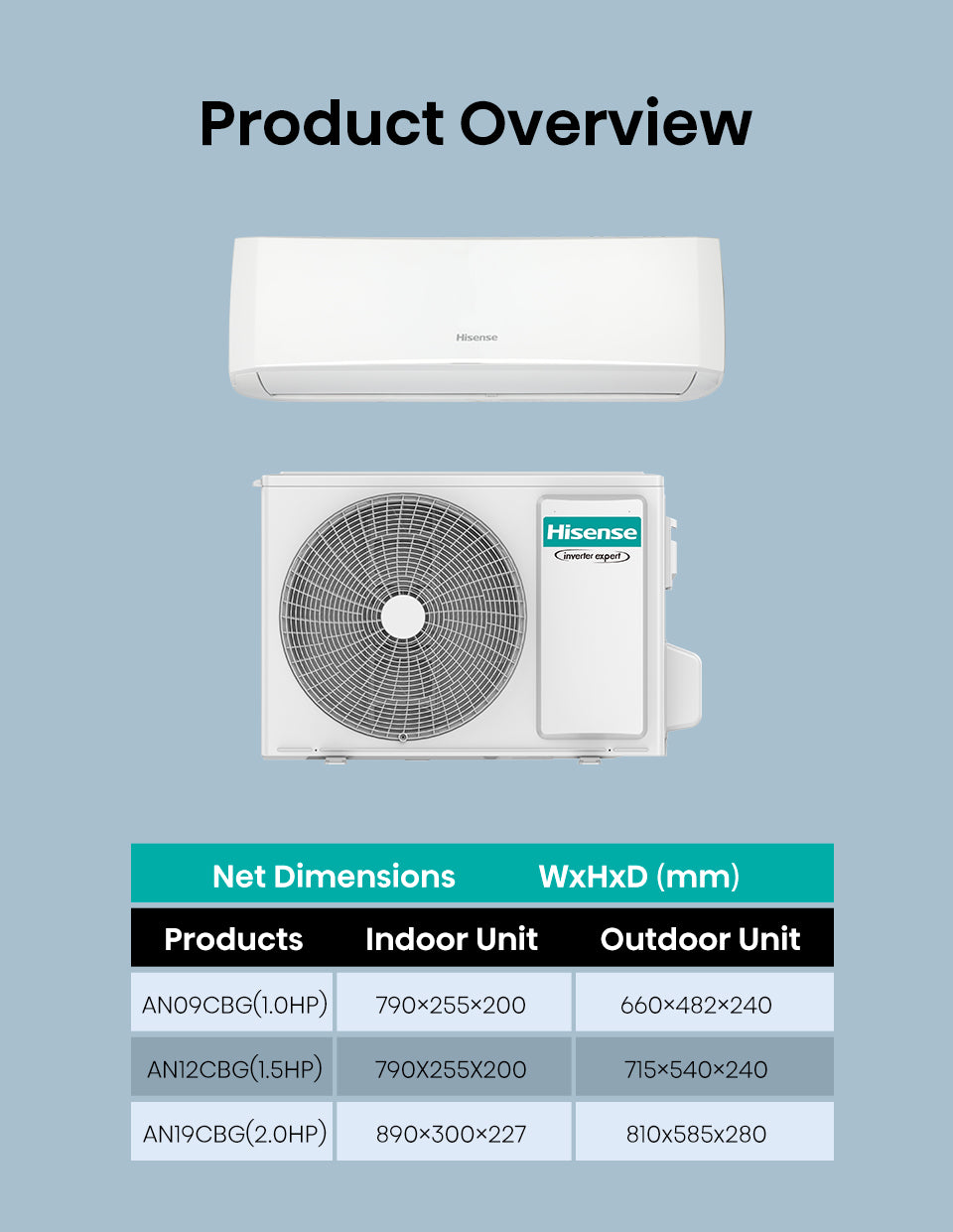

| Net Dimensions
W x H x D (mm) |
Indoor Unit | 790 x 255 x 200 | 790 x 255 x 200 |
| Outdoor Unit | 715 x 540 x 240 | 660 x 482 x 240 | |
| Gross Weight (KG) | Indoor Unit | 9.0 | 9.0 |
| Outdoor Unit | 29.0 | 24.5 | |
| Net Weight (KG) | Indoor Unit | 7.5 | 7.5 |
| Outdoor Unit | 26.5 | 22.5 | |
